Understanding Mini Split AC Systems
What is a Mini Split AC?
A mini split AC, also known as a ductless mini-split system, is an innovative air conditioning solution that offers flexibility and efficiency. Unlike traditional heating and cooling systems that rely on ductwork, mini split ACs consist of an outdoor compressor and one or more indoor units. This design allows for targeted temperature control, making it ideal for various applications, including home additions, multi-family units, and retrofitting older structures. With the increasing need for energy-efficient cooling options, the mini split ac has become a popular choice among homeowners and businesses alike.
Key Components of Mini Split AC
Understanding the basic components of a mini split AC is crucial for appreciating its functionality. The system primarily consists of:
- Outdoor Unit: This part houses the compressor, condenser, and expansion valve. It is responsible for dissipating heat absorbed from inside the building.

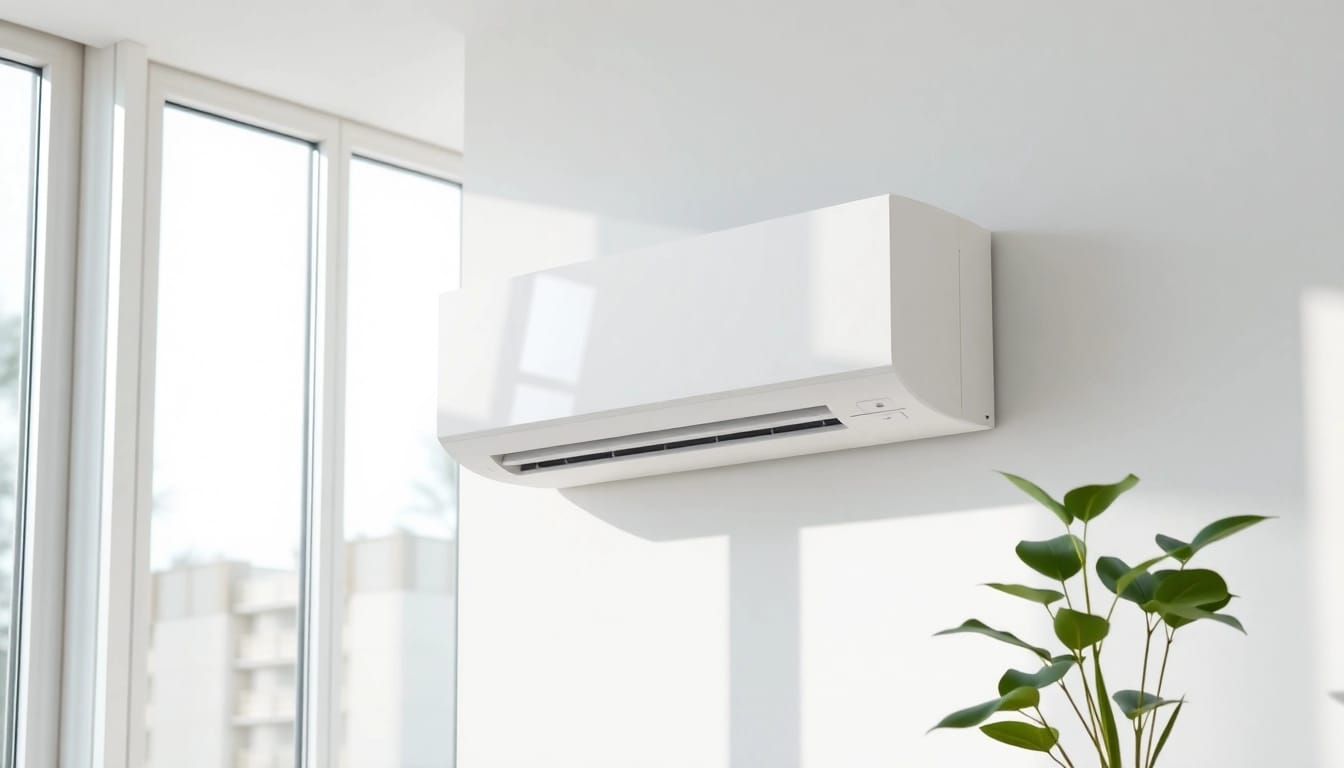

- Indoor Unit: These units are installed in the living or working space. They circulate cool air into the room and come in various styles, including wall-mounted, ceiling-mounted, and floor-mounted types.
- Refrigerant Lines: These insulated copper tubes connect the outdoor and indoor units, allowing the refrigerant to flow between them and facilitate heat exchange.
- Drain Line: This line helps in draining condensate formed during the cooling process.
How Mini Split AC Works
At its core, the mini split AC operates on the refrigeration cycle. When the indoor unit draws warm air from the room, it passes it over evaporator coils filled with refrigerant. The refrigerant absorbs the heat, turning from liquid to gas. The cooler air is then blown back into the room, while the gas is transported to the outdoor unit, where it is compressed and cooled back into a liquid before returning to the indoor unit. This continuous cycle maintains the desired indoor temperature efficiently.
Benefits of Mini Split AC
Energy Efficiency Advantages
One of the standout features of mini split AC systems is their energy efficiency. These units often have high Seasonal Energy Efficiency Ratios (SEER), which measure cooling output relative to energy consumed. By avoiding the duct losses common in traditional systems, which can waste 20-30% of energy, mini split ACs can help reduce energy bills significantly. Many models also incorporate inverter technology, allowing the compressor to adjust its speed based on the cooling demand, further optimizing energy usage.
Space-Saving Design
Mini split ACs are designed to take up less space compared to conventional systems. With no ducts required, they can be easily installed in various locations without compromising aesthetics. This design flexibility is particularly beneficial for homes that lack sufficient space for ductwork or for historic buildings where maintaining original architecture is crucial. The slim profiles of indoor units allow for discreet installation and unobtrusive cooling.
Enhanced Comfort Levels
The ability to control temperatures in individual rooms or zones enhances overall comfort. Each mini split indoor unit can be controlled separately, allowing different temperatures in different spaces depending on specific needs. This zoned approach is particularly valuable in homes with varying occupancy levels, ensuring that energy is not wasted in areas that are unoccupied. Additionally, modern mini split systems often come equipped with advanced features such as programmable thermostats, remote controls, and air purifiers, further enhancing comfort and convenience.
Installation Process of Mini Split AC
Choosing the Right Location
Choosing the correct location for both the indoor and outdoor units is critical to the performance and efficiency of mini split AC systems. Indoor units should be placed where they can best circulate air throughout the space, typically on an interior wall and away from obstructions. Outdoor units should be placed on stable ground or mounted on brackets in well-ventilated areas, away from direct sunlight and debris that could obstruct airflow.
Essential Tools for Installation
A successful installation requires several tools, including:
- Drill with bits for concrete and wood
- Level to ensure the units are installed properly
- Pipe cutter for refrigerant lines
- Vacuum pump for removing air from refrigerant lines
- Manifold gauge set for checking refrigerant levels
- Wrench set for tightening fittings
Step-by-Step Installation Guide
The installation process can be broken down into several essential steps:
- Install the Indoor Unit: Mount the bracket on the wall, drill a hole for the refrigerant and drain lines, and then connect the indoor unit to the bracket.
- Install the Outdoor Unit: Place the outdoor unit on solid ground or on the brackets and ensure it is level.
- Run Refrigerant and Drain Lines: Carefully route the refrigerant line set from the indoor unit to the outdoor unit, ensuring to maintain proper insulation.
- Connect Electrical Wiring: Make connections for power supply and ensure all safety precautions are followed.
- Purge Air and Charge System: Use a vacuum pump to remove air from the refrigerant lines and charge the system with refrigerant as required by the manufacturer.
- Test the System: Once installed and connected, turn on the system to ensure it operates correctly and efficiently.
Maintenance Tips for Mini Split AC
Regular Cleaning Routines
Regular maintenance is crucial for ensuring the longevity and efficiency of mini split AC systems. Users should regularly clean or replace filters, approximately every one to two months during peak usage periods, to maintain optimal airflow and air quality. Dust and debris can cause the system to work harder, increasing energy consumption.
Checking Refrigerant Levels
Maintaining appropriate refrigerant levels is critical for efficient operation. Low refrigerant levels can lead to reduced cooling capacity and potential damage to the compressor. Homeowners should regularly check for any leaks in the refrigerant lines or connections and consult professionals if the refrigerant needs refilling or if any issues are detected.
Common Troubleshooting Steps
Identifying and solving common issues with mini split ACs can minimize costly repairs. Common troubleshooting steps include:
- Checking and replacing air filters for airflow restriction.
- Ensuring that the outdoor unit is free from debris.
- Resetting circuit breakers if the unit does not power on.
- Observing for unusual noises or vibrations that might indicate mechanical issues.
Frequently Asked Questions about Mini Split AC
What is the lifespan of a mini split AC?
The average lifespan of a mini split AC is about 15 to 20 years, depending on usage, maintenance, and installation quality.
Can I install a mini split AC myself?
While DIY installation is possible, it is recommended to hire a professional for proper setup, especially for electrical and refrigerant handling.
How do I size a mini split AC for my room?
To size a mini split AC, determine the room’s square footage and use a BTU calculator, considering factors like insulation and sunlight exposure.
Are mini split AC systems noisy?
Mini split AC units are generally quieter than traditional systems. Indoor units operate at sound levels similar to a quiet room, providing unobtrusive cooling.
What maintenance does a mini split AC require?
Maintenance includes regular filter cleaning/replacement, checking refrigerant levels, and keeping outdoor units free of debris for optimal performance.
